+6-
38ft long
-
10,730 lbs
-
Sleeps 4
-
3 slides
-
Rear Living AreaKitchen Island

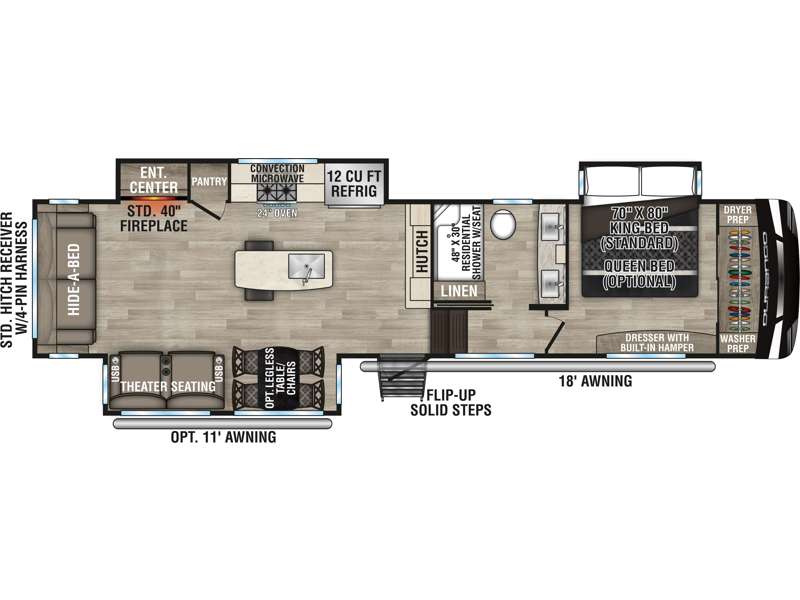

D333RLT Floorplan
Specifications
| Sleeps | 4 | Slides | 3 |
| Length | 37 ft 10 in | Ext Width | 8 ft |
| Ext Height | 12 ft 8 in | Interior Color | Barista |
| Hitch Weight | 2000 lbs | GVWR | 12995 lbs |
| Dry Weight | 10730 lbs | Cargo Capacity | 2235 lbs |
| Fresh Water Capacity | 76 gals | Grey Water Capacity | 50 gals |
| Black Water Capacity | 50 gals | Tire Size | 16" |
| Furnace BTU | 35000 btu | Available Beds | King |
| Refrigerator Type | Gas/Electric | Refrigerator Size | 12 cu ft |
| Convection Cooking | Yes | Cooktop Burners | 4 |
| Shower Size | 48" x 30" | Number of Awnings | 1 |
| Axle Weight | 8760 lbs | LP Tank Capacity | 30 lbs |
| Water Heater Type | On Demand Tankless | AC BTU | 15000 btu |
| TV Info | LR 50" Smart LED TV | Awning Info | 18' Power w/LED Light Strip |
| Axle Count | 2 | Washer/Dryer Available | Yes |
| Number of LP Tanks | 2 | Shower Type | Shower w/Seat |
| Electrical Service | 50 amp | VIN | 4EZFD3927P6020384 |
Description
KZ Durango fifth wheel D333RLT highlights:
- Rear Living Area
- Kitchen Island
- Full Bathroom
- Hutch
- Front Private Bedroom
Don't pass up your chance to camp in true luxury with this fifth wheel! There is a kitchen island with two bar stools for others to help prepare dinner which can be either cooked on the four burner range or inside the 24" oven. The hutch can store your dishes and the large pantry can store your favorite snacks/canned goods. After a fun day at the beach, rinse the sand out in the 48" x 30" residential shower with a seat in the full bathroom, plus it has a dual sink vanity for two to get ready at once in the morning. When it's time to relax either lay down on the king bed slide in the front private bedroom or head to the rear living area where you can lay on the hide-a-bed sofa or sit in the theater seating with USB charging across from the entertainment center with a 40" fireplace and 50" smart LED TV to watch a movie!
Enjoy full time living, an affordable price, and a wide body construction for more living space with every one of these KZ Durango light high-profile fifth wheels! These luxury units can be used all year round with the all-weather insulation package, the 3" x 14" foam-core in-floor straight-line heating system w/ a 35,000 BTU furnace, and the 15,000 BTU ducted roof A/C which optimizes the airflow by an average of 40% for better performance, cooling time, and reduction of noise. A few other construction features you will appreciate include a one piece, seamless walk-on Tufflex roofing material, Pex® in-floor heated waterlines, a Lamilux® gelcoat fiberglass exterior, and Dexter® axles with self adjusting brakes and height adjusting hangers. You can even head to the woods and go off-grid when you choose the optional off-the-grid solar package. Modern farmhouse cabinetry, a king size bed, and smart TVs will have you feeling like you never left home!
- KZ Advantage Package
- KZ Convenience Package
- FS Table & 4 Chairs IPO Dinette
- Power Vent Fan - Bathroom
- 2nd LED Lighted Power Awning
Features
Standard Features (2023)
Construction
- Steel Powder Coated I-Beam w/Drop-Frame Pass-Thru Storage
- R-13 2" Block Foam Bonded Sidewalls w/EGS Metal Backing Strips (to support all int. cabinets)
- Lamilux® Gelcoat Fiberglass
- Fully-Insulated Sliderooms
- 1-Piece, Seamless, Walk-on, Tufflex Roofing Material w/20-Year Warranty
- 5/8" Tongue & Groove, Screwed & Glued Plywood Floor Decking
- Fully-Vented Attic System
- Completely Heated Water System
- Pex® In-Floor Heated Waterlines & Kitchen Gray Pipes (all waterlines & drainlines are located above all insulation)
- Fully Heated & Enclosed Underbelly
- Radius Front Cap (for increased turning radius on short bed trucks)
- Extra-Reinforced Heavy-Duty Front Fiberglass Cap
- All-Weather Insulation Package (upgrades roof, floor, ceiling, endcaps & tanks to R-38)
Exterior
- Dexter® Axles w/Self Adjusting Brakes & Height Adjusting Hangers
- 8-Lug Heavy-Duty Aluminum Rims w/16" E-Range Nitrogen-Filled Radial Tires
- 100% Exterior LED Running Lights & Taillights
- LED Front Docking Light & Sewer Hookup Light
- Electric Power Awning w/LED Light Strip
- (2) 30 LB. Propane Bottles on Same Side of Coach for Easy Access
- Side-Mounted Sealed Battery Compartment
- Partially Painted Front Cap
- 50 AMP Service w/Marine Power Cord
- 15,000 BTU Ducted Roof A/C w/Pre-Wire for Optional 15,000 BTU Bedroom A/C
- 3" x 14" Foam-Core In-Floor Straight-Line Heating System w/35,000 BTU Furnace
- Deluxe Heated Water Convenience Center (includes black tank flush, power fresh tank water fill, winterizing system, outside shower)
- Fully-Finished, Heated & Sealed Basement Storage Compartment
- Swing-Away Assist Grab Handle
- Roof Ladder
- No-Slide Rubberized Basement Flooring
- Dual Lock Basement Storage Slam Latches
- Satellite Pre-Wire (roof & ground)
- Outside Speakers & Pre-Wire for Exterior TV
- Full-Perimeter Rain Gutter System (incl. rear & additional gutters over sliderooms)
- LP Quick Connect
- Undermount Spare Tire
Living Room/Kitchen
- Heavy-Duty 100 LB Drawer Glides on Every Drawer
- Baltic Birch Drawer Boxes
- 5" Black Cabinet Hardware
- XL Toggle Light Switches
- Large Ceiling Crown Molding
- All LED Ceiling & Cabinet Lights w/Multiple On/Off Switches
- Deluxe Residential-Style Furniture
- HD Flat Panel TV w/Swing Arm Bracket & Storage behind TV (most models)
- Ceiling Fan (where applicable)
- Solid-Surface Kitchen Countertops & Sink Covers w/Large Handholds
- Residential Stainless Steel Sink
- Pullout High Arching Faucet
- Kitchen Window (most models)
- All-Wood Lumber Core Screwed Cabinets w/Hardwood Doors
- Adjustable Pantry Shelves (where applicable)
- All Kitchen OH Cabinets Include Shelf
- 4" High Density Foam Cushions on all Booth Dinettes
Bathroom/Bedroom
- Residential One-Piece Fiberglass Shower Stall w/Built-in Seat & Glass Doors
- Shower Skylight
- Porcelain Foot-Flush Toilet
- All LED Lights in Bed & Bath w/Multiple Large Switches
- Vent Fan in all Baths
- Large Linen Closet in Every Bathroom
- One-Level, Full-Height Bedrooms
- Padded Headboard w/Power Outlet Near Bed
- XL Under-Bed Storage
- Luxurious Bedspread
- Dual Drawers, Large Hanging Space
- Washer & Dryer Prep in Front Closet
- Bedroom TV Pre-Wire
KZ Advantage Package (Mandatory)
Exterior
- 4 Point Auto Electric Leveling
- Polar White Gelcoat Exterior Fiberglass
- Painted Fiberglass Front Cap
- 5-Sided Aluminum Framing
- Flip-up Entry Steps (main entry)
- 50 AMP Service w/2nd A/C Prep
- 15K Ducted A/C
- 5/8" Tongue & Groove Plywood Floor
- Key-Alike for Baggage & Entry Doors
- Friction Hinge Entry Door w/Shade Prep & Screenshot Features
- Oversized Folding Grab Handle
- Power Front Jack
- Undermount Spare Tire
- Equa-Flex Suspension
- Nitrogen-Filled Tires
- Battery Disconnect
- Black Tank Flush
- Backup Camera Prep
- Roof-Mounted Solar Prep w/Connection
- All-Weather Insulation Package (heated, enclosed & insulated underbelly, plus foil in floor, roof, front, rear)
- 2" Towing Receiver Hitch w/4-Pin Wire Harness Connection (3,000 LB tow rating & 300 LB hitch rating)
- Roof Ladder
- (2) Attic Vents
- Leash Latch w/Bonus Beverage Opener
- Metal Latches on Baggage Doors
- Frameless Windows
Interior
- Porcelain Foot-Flush Toilet
- Stainless Steel Bathroom Sink
- Pocket Door for Bathroom
- Plywood Bed Base
- Serta Comfort Foam 70" x 80" King Mattress
- Modern Farmhouse Cabinetry
- Beauflor Flooring in Slideouts
- Solid Hardwood Slideout Fascia
- Power Vent Fan in Main Area
- Tri-Fold HAB Sofa
- (3) Motion Sensor Lights (entry, closet, basement)
- 40" Wideview Fireplace
- 43" Smart LED TV
- JBL 2.0 Sound Bar w/Bluetooth
- 12V Dual USB Charging Station
- Night Roller Shades
- Soft Auto-Close Drawer Glides
- RV Airflow A/C System w/Air Filter - More Info
- Solid-Surface Countertops w/Deep Undermount Stainless Steel Kitchen Sink w/Sink Cover
- Trash Can under Sink
- 24" Oven w/4-Burner Range
- 30" Convection Microwave
- Kitchen Skylight w/Shade
- 36" Pullout Storage Bins in Booth Dinette
- Legless Table Base for Dinette Table & Chairs (select models)
KZ Convenience Package (Mandatory)
Exterior
- KZ Engage Powered by OneControl w/5" Screen (control system monitors tank levels & battery levels, controls sliderooms, leveling system, awnings, inside/outside lighting & includes TPMS system prep, power awning w/LED light strip)
- 16" Tires w/Aluminum Wheels
- Magnetic Catches for Baggage Doors
- Omnidirectional HDTV Antenna w/Wi-Fi Prep
Interior
- Electric Outlet in Bunk Area
- Curved Hardwood Steps in Hallway
- Wood Accent Trim on Corners/Entry Doors
- Vision S Prep (blind spot monitoring)
- On-Demand Tankless Water Heater, 2.4 Gallons/Minute, Vortex Technology Keeps Temperatures Steady to Reduce Cold Spots & Scalding. Intelligent Control w/Low Flow Indicator.
- Lithium Battery Ready
- JBL Flip 5 Bluetooth Speaker w/Locking Wall-Mount in Basement Storage Area
- 12 CU FT Gas/Electric Refrigerator w/Temperature Controls
- Matte Black Residential Kitchen Faucet w/Spring Sprayer
Options
Exterior
- 2nd Ducted A/C (15,000 BTU)
- Dual Pane Frameless Windows
- Wireless Backup Camera System - Observation & Vision S
- “Off the Grid” Solar Package (2) 220W Solar Panels, 30A MPPT Solar Charge Controller w/MPPT Remote Panel, 2,000W True Sine Wave Inverter w/All Outlets “Hot”
- (2) 100AH Lithium Batteries
- Generator Prep (includes start/stop harness)
- 5.5 KW LP Onan Generator (requires prep)
- 2nd LED Lighted Power Awning (mandatory D301RLT, D311BHD, D333RLT, D348BHF, D349DBF)
- 32" Exterior TV w/Bracket
- Pellet Smoker & Table (mandatory D321RKT, D348BHF)
Interior
- Power Vent Fan in Bathroom
- Power Vent Fan in Bunk Bathroom (mandatory D348BHF, D349DBF)
- 32" Bedroom LED TV
- Serta Comfort Foam 60" x 80" Queen Mattress
- Hide-A-Bed Sofa IPO Lower Bunk (mandatory D348BHF)
- Theater Seating w/Heat & Massage Features IPO Tri-Fold HAB (D348BHF, D349DBF)
- 2,000W Pure Sine Wave Inverter Making All General & GFI Outlets “Hot” (plus, it will include a 240AH lithium battery w/Bluetooth app controls)
- F/S Dinette Table & 4 Chairs IPO Dinette
- 18 CU FT House Refrigerator w/2,000W Inverter IPO 12 CU FT Gas/Electric Refrigerator (all models) – Works w/“Off the Grid” Solar Packages
- Full-Timer’s Hardwood Desk IPO Dinette Table
- Ottoman w/Storage
Boondock Solar System
- (8) 220W Solar Panels = 1,760 Watts of Solar Power
- 5,000 Watt Victron Inverter/Charger 24V – Powers Everything in Your Fifth Wheel + (1) 15,000 BTU A/C w/Soft Start for A/C
- 100 Amp Victron MPPT Solar Charge Controller
- (2) 200AH 24V Lithium Batteries (which is equal to (8) 100AH 12V Lithium Batteries)
- Victron DC-DC Converter 24V to 12V 70 Amp Converter
- Victron Battery Protect 12/24 Volt 65 Amp Low Battery Protect
- Victron Battery Monitor w/Built-in Bluetooth – Allows for Accurate State of Charge to be Displayed
- Victron Cerbo Communication Hub – Connects All Victron Devices Plug in to Have Single Point Monitoring
- Victron Global Linx – Connects to Cerbo to Allow Wi-Fi & Cell Card Monitoring (allows for system to be monitored remotely)
- Victron Touch Screen Display – Shows All Functions of the System
- Download the VictronConnect App to Get Live Status Info and Configure Victron Products w/Built-in Bluetooth
Bonus Features
- Lightest high-profile, wide body, luxury fifth wheels in the industry (average weight is 11,100 LBS)
- KZ has received the Dealer Satisfaction Index Award for 19 years
- KZ’s 50 years of stable, dedicated manufacturing experience, coupled with its predominant Amish workforce, heritage, and commitment to superb quality, allow us to produce the best value luxury fifth wheel available
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
